Chieftec BT-04B-U3-250VS Mini-ITX Tower

£39.00
(£46.80 inc VAT)
List price: £56.40
Short description:

Mini ITX Case, 250W PSU Included

Supports Graphics Cards up to 190mm Length

0300
Out of stock

We (Kustom PCs Ltd) will add your email address to a special mailing list for this product. Once the product is in stock, you’ll get an email about it automatically, and your email address will be removed from the product’s mailing list. The message is a one-off, and once notified about the product, no further data regarding this request is retained.

The data will be visible to some members of our staff. If you’d like to have your personal data removed, send an email to sales@kustompcs.co.uk.

If you believe that your personal data has been misused, you have the right to lodge a complaint with a supervisory authority. We’re obliged by EU General Data Protection Regulation to let you know about this right; we don’t actually intend to misuse your data.

Click and Collect Info - Click add to cart, checkout, fill out your address and choose 'Collect From Shop' as the delivery method. Orders for stock items ready for pickup within minutes (note that items like computers requiring setup take longer).

Full info including detailed instructions, operating hours and location / parking info here - Shop Collection Info

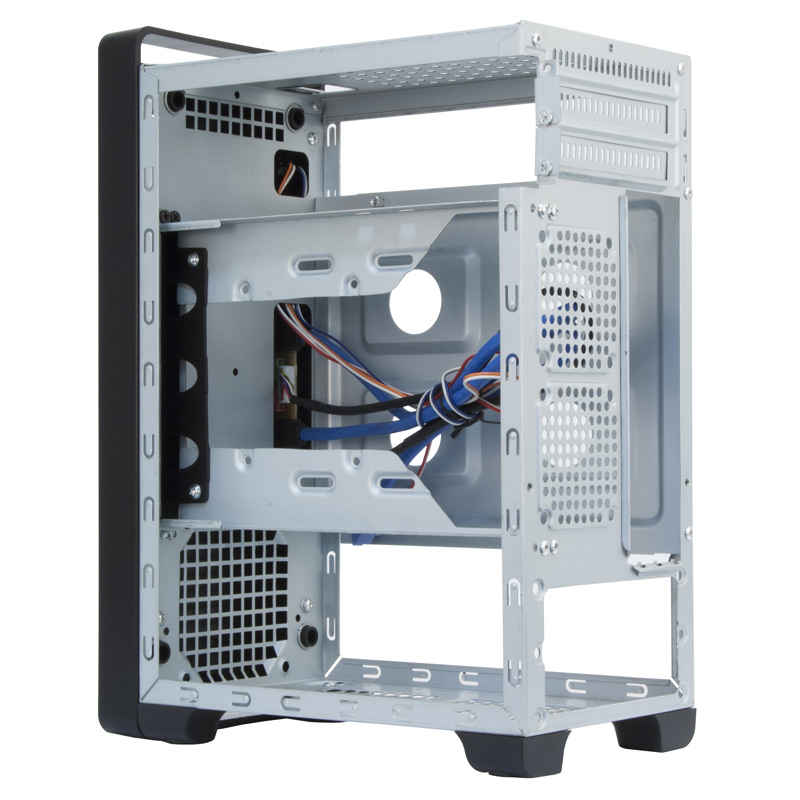

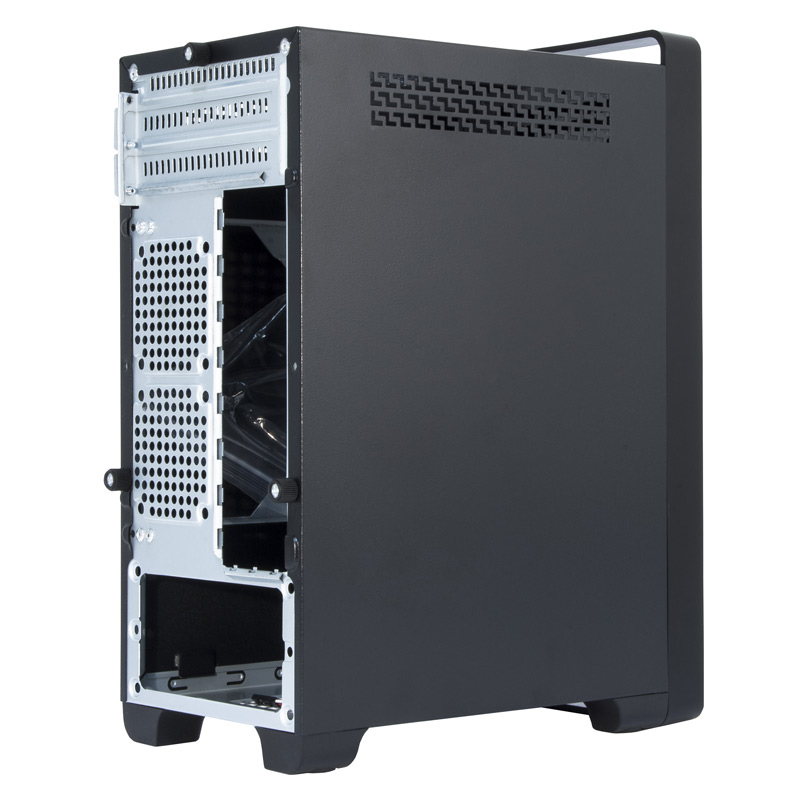

With its elegant aluminum appearance and suitable for application as both a Desktop or Tower, this ITX case suits the expectations of both the general purpose and high-performance and/or gaming audience, providing plenty of internal space including room for the installation of 2x slot VGA cards with max. lengths of 190mm (eg. GTX-750 / GTX-650), while still maininting a very compact form factor.

Dimensions W D H
135mm 240mm 323mm
Weight 3.5kg inc PSU
Front Fan 1 x 800mm Mount (No Fan)
Rear Fan 2 x 60mm Mounts (No Fan)
Top Fan -
Bottom Fan -
Side Fan -
Radiator Support -
5"1/4 Bays 1 x Slimline 5.25" CD
3"1/2 Bays 1 x 3"1/2 Internal
2"1/2 Bays 1 x 2"1/2 Internal
(or 2 if 3"1/2 bay not used)
Motherboard Mini-ITX
Power Supply 250W Power Supply Included
Material Front: Aluminium Effect Plastic
Structure: Steel
CPU Cooler Max Height 60mm with 3"1/2 HDD
Max Height 70mm with 2"1/2 HDD
Window No
Graphics Support Up to 190mm Length
Vertical Graphics -
Expansion Slots 2
Hubs -
Connectors USB 3.0 x 2
Mic / Audio





CSM-250P Power Supply Spec

Performance

AC Input: 230-240V / 3.0A
Frequency: 47-63 Hz
+5V: 16A
+3,3V: 16A
+5V & +3,3V combined: 100W
+12V 1: 20A / 240W
+12V 2: -
+12V 1 & +12V 2 combined: N/A
+12V 3: N/A
+12V 4: N/A
+12V 3 & +12V 4 combined: N/A
P.F.: >0,9
-12V: 0,3A / 3,6W
+5VSB: 2A / 10W
Maximum Load: 250W





























Native cable

20+4PIN ATX: 1
SATA: 2
MOLEX: 2
Floppy: 1
4PIN 12V: 1
8PIN 12V: -
8PIN (4+4) 12V: -
6PIN PCIe: -
8PIN (6+2) PCIe: -



















Features

Spezification: ATX 12V 2.3
Form factor: SFX
Efficiency: > 80%
Dimension (DxWxH): 100 mm x 125 mm x 64 mm
PFC: Active PFC (0,9)
Fan: 60mm silent fan
Security:
  • UVP (Undervoltage protection)
  • OVP (Overvoltage protection)
  • SCP (Short-circuit protection)
  • OPP (Overload protection)
  • AFC (Automatic Fanspeed Control)
Warranty: 24 Month
Colour:
Black
Width:
135mm
Depth / Length:
240mm
Height:
323mm
GTIN:
04710713231719
MPN:
BT-04B-U3-250VS

New features

Manufacturer:
Chieftec

Cases

Case Form Factor:
Mini ITX
Graphics Card Support:
190mm
Case Window:
Solid Panels
Case Lighting:
None
Case Slim Optical Bay:
Case 5"1/4 Bays:
0
Case 3"1/2 Bays:
1
Case Dedicated 2"1/2 Bays:
1
+ −
