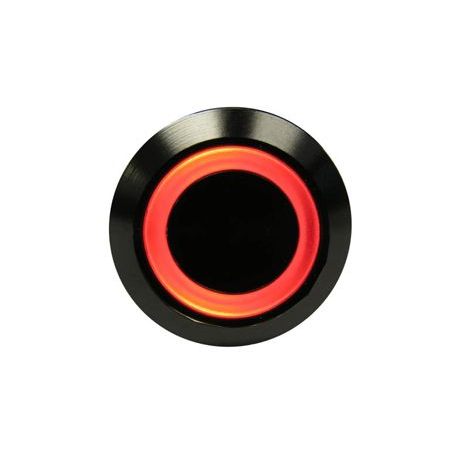

Lamptron Lighted Switch (Momentary) 18-22mm Black / Red Ring

£10.00
(£12.00 inc VAT)
Short description:
Vandal Resistant Style (Hole size 18mm, Front Panel Diameter 22mm)
2210
Out of stock

This momentary on/off switch is the ideal new switch for modding enthusiasts. When turned on, the ring around the push button illuminates in the specified color. Easy to install and will fit on a regular 5.25 drive cover or wherever you chose to mount it.

This extensive range of vandal resistant security switches are designed for use in potentially hostile environments, such as access control applications or, in the case of modders, powering up your case to "on" or for use as a reset button.

Features:

* Front Panel Mounting
* Ring Illuminated
* 22mm diameter on front panel
* 17.5mm diameter shaft size
* S.P. Push to Make
* 50mA, 24V dc contact rating Switch
* Bright Daylight LEDs
* Separate LED Terminals

NOTE: Models in current stock are now rated at 12v. When connected to the 3.3v LED output they will illuminate dimly. For brightest illumination connect to a 12v supply.

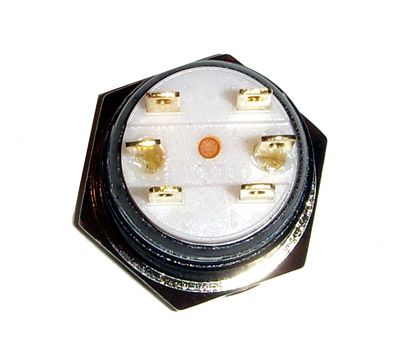

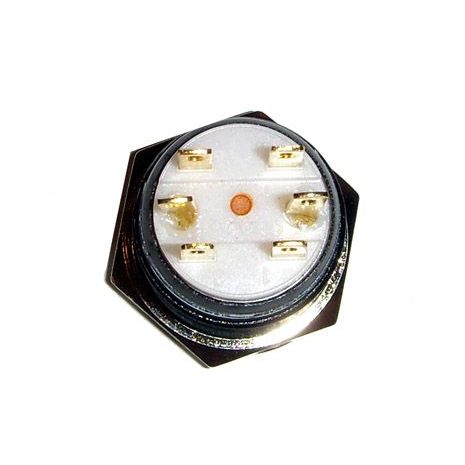

Connect - and + connections to motherboard LED headers or to a 12v supply (eg to a fan header). Connect pins 3 and 4 for switch.

If you want to wire up your own cabling, 2pin header kits are available here. For general installation, a ready made wiring kit is also availablehere. Note that when using the ready-made wiring kit, you will need to either crimp the spade connectors or remove them and thread the wire on to the switch, as the 16mm switches use smaller terminals than the larger switches that the above kit is normally used for.

Please see our detailed installation guide on this forum thread: http://forums.kustompcs.co.uk/threads/lamptron-vandal-resistant-power-switch-connection-guide.26832/


Specifications:

Terminations: /28 (2.8mm tabs)
Switching: S.P. Push to make, tactile S.P.
Max. Rating: 50mA, 24V d.c. switch
Contact Resistance: <100mΩ
Insulation Resistance: >103 MΩ
Dielectric Strength: Contact to Panel >2.0kV
Contact to Contact 1500V Contact
Operating Temp. Range: .30°C to +70°C
Sealing (Front of panel only): Protection Classification: IP66 EN60529

Recommended Mounting Hole Size : 18-20mm

Dimensions :  Length - 26mm for switch barrel only, 34mm with pins. Diameter of barrel is 17.5mm, diameter of locking ring is 22mm.

+
