What This Product Does

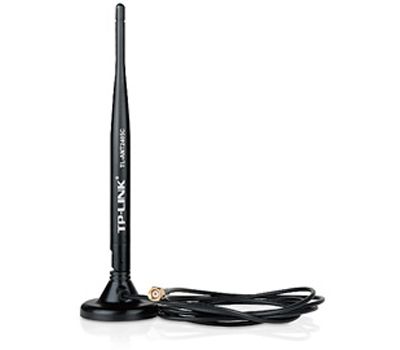

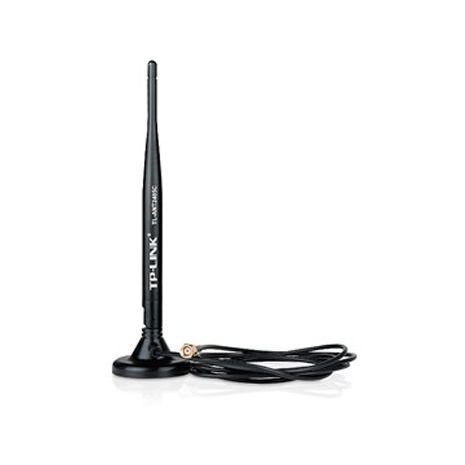

Indoor desktop omni-directional antenna TL-ANT2405C operates in the 2.4-2.5 GHz band and provides 5dBi omni-directional operation, which largely extends the wireless range and delivers much better wireless performance. The antenna offers the RP-SMA Male (Plug) connector guaranteeing wider compatibility with most of the wireless equipments.
Replacing your wifi antenna with TL-ANT2405C will significantly increase the range and strength of your wifi signal. This quality built omni-directional antenna is a direct replacement for the antenna that comes standard with your router, access point. Because it is omni-directional, no aiming is required - it can send and receive wifi in all directions.
Easy To Use
Installation is very easy - just detach your device's factory antenna and attach our booster antenna and you'll experience an instant increase in signal coverage and stability. Please note that the increase in signal strength depends mostly on your router or adapter; upgrading the antennas helps but the signal cannot transmit or receive at a level that your modem or adapter does not have.
Dimension - 50 x 201 mm
Frequency - 2.4GHz~2.5GHz
Impedance - 50 Ohms
Gain - 5 dBi
Radiation - Omni-directional
VSWR(MAX.) - 1.92:1
HPBW/H( °) - 360°
HPBW/V( °) - 32°
Polarization - Linear, Vertical
Mounting - Wall Mount/Desktop
Application - Indoor
Operating Temp. - -40?~65?(-40?~149?)
Storage Temp. - -40?~80? (-40?~176?)
Operating Humidity - 10%~90% non-condensing
Storage Humidity - 5%~90% non-condensing
Compliant with 802.11n/b/g (2.4GHz)
5dBi signal gain
130cm low-loss extension cable
RP-SMA Male connector
