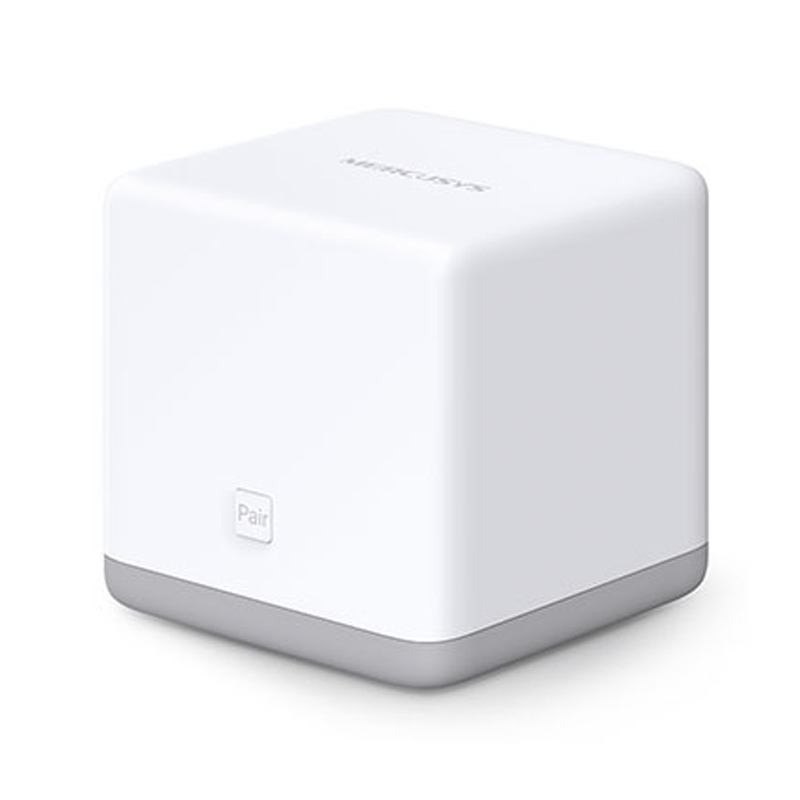

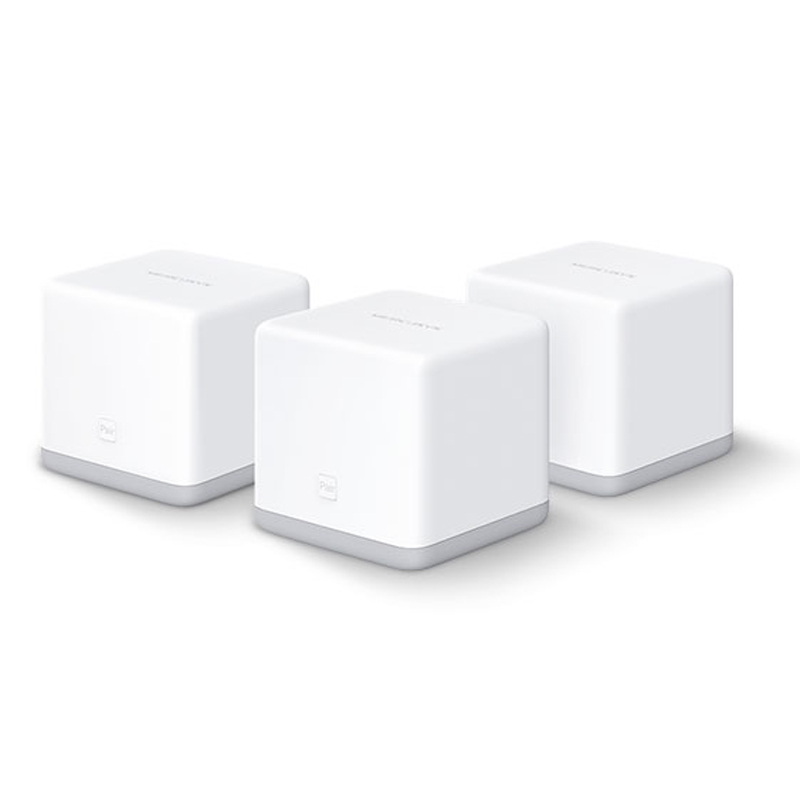

Mercusys Halo S3 - 300 Mbps Whole Home Mesh Wi-Fi System (3-pack)
- One Unified Network – With advanced Mesh Technology, Halo units work together to form one unified whole-home network with one Wi-Fi name and one password.
- Seamless Roaming – Automatically switch between Halos as you move around your home, always getting the best signal to enjoy the fastest connections for all your devices.
- Ultra-High Performance Wi-Fi – Blanket up to 3,000 square feet (280 m²) with high-speed Wi-Fi, ideal for 3–5 bedroom houses.
- Connects over 60 devices – Enjoy lag-free connection and non-stop entertainment on all your devices, at the same time.
- 3 Year Warranty
| Wireless | Wireless Standards | IEEE 802.11b/g/n | Software | WAN Type | Dynamic IP/Static IP/PPPoE/PPTP/L2TP | |
| Frequency | 2.4 - 2.5 GHz | Management | Access Control Local Management Remote Management |
|||
| Signal Rate | 300 Mbps on 2.4 GHz | DHCP | Server, Address Reservation, DHCP Client List | |||
| Reception Sensitivity | • 11g 6M: -95dBm • 11g 54M: -77dBm • 11n 20M MCS7: -75dBm • 11n 40M MCS7: -72dBm |
Port Forwarding | Virtual Server, UPnP, DMZ, Port Triggering | |||
| Transmission Power | <20dBm (EIRP) | Protocols | IPv4, IPv6 | |||
| Wireless Security | WPA2-PSK + AES | Guest Network | 2.4 GHz Guest Network | |||
| Wireless Functions | Enable/Disable Wireless Radio, Wireless Statistics | |||||
| Mesh protocol | 802.11k/v | |||||

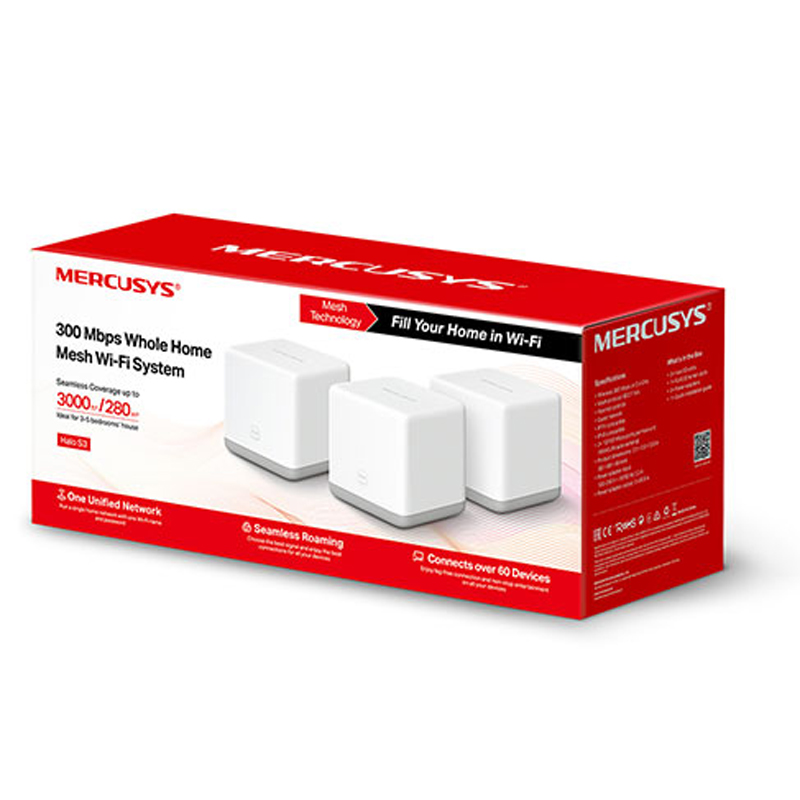

| Hardware | Dimensions (WxDxH) | 3.5 × 3.5 × 3.5 in (88 × 88 × 88 mm) | Other | Package Contents | • 3× Halo S3 Units • 1× RJ45 Ethernet Cable • 3× Power Adapters • 1× Quick Installation Guide |
|
| Button | Pair button, Reset button | Environment | • Operating Temperature: 0°C~40°C (32°F~104°F) • Storage Temperature: -40°C~70°C (-40°F~158°F) • Operating Humidity: 10%~90% Non-Condensing • Storage Humidity: 5%~90% Non-Condensing |
|||
| External Power Supply | 9V/0.6A | |||||

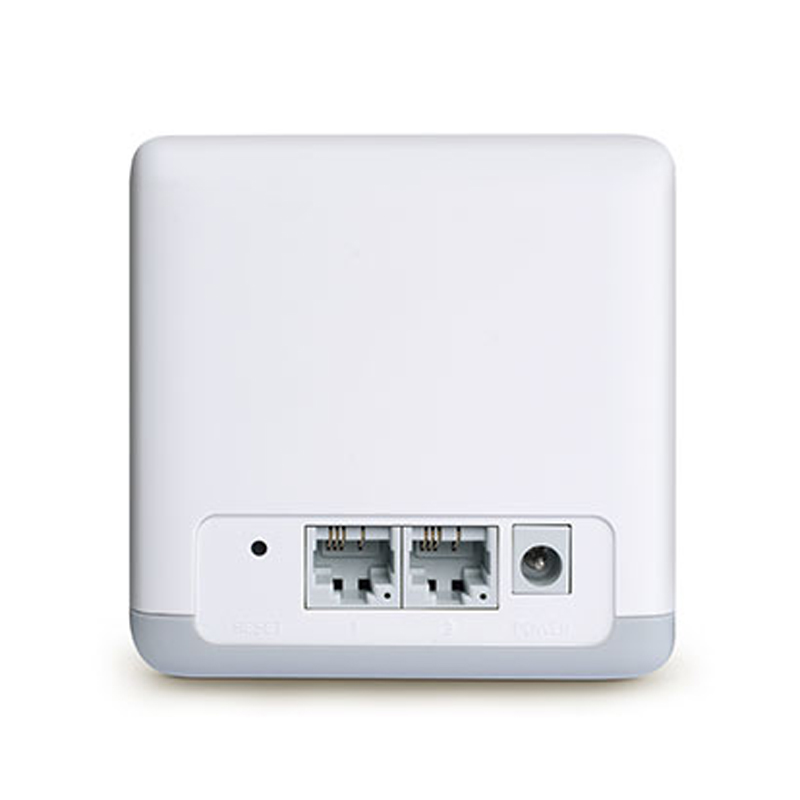

| Ethernet Ports | 2 10/100 Mbps ports per Halo unit (WAN/LAN auto-sensing) |
Whole-Home Coverage
From the Front Door to the Backyard
With Mercusys Mesh Technology, Halo S3 works as a unified system to guarantee a strong Wi-Fi signal in every corner of your home, covering up to 3,000 square feet (280 m²).
Seamless Roaming
Devices are intelligently connected to the Halo with the strongest signal and highest capacity. No more sudden signal drops or lagging Wi-Fi when you’re walking around the house.
Non-Stop Entertainment on All Your Devices
Halo S3 provides fast connections for over 60 devices at the same time. Keep phones, computers, tablets, and smart home and other IoT devices connected and operating at peak performance.
Expand Anytime
Halo S3 is compatible with every other Halo model to form a Mesh network. Expand Mesh Wi-Fi coverage anytime by simply adding more Halos.
|
Parental Control |
Guest Network |
Hassle-Free Installation |
