No need for new wires or drilling
Network passes through walls and floors
Integrating advanced HomePlug AV2 technology, this kit provides users with high-speed data transfer rates up to 1000 Mbps, which is ideal for bandwidth-intensive applications such as simultaneous HD/3D/4K video streaming, online gaming, and large file transfers. Just plug in and enjoy!
Provide reliable high-speed wired connections for game consoles, smart TVs, STBs, and more.
1
Connect a powerline adapter
to your router.

2
Plug another powerline adapter into a wall socket in another room.

3
Connect it to your internet-enabled device via Ethernet—and you’re done!

Simply plug into your TL-PA7027P KIT as though it were a normal wall socket. Feel free to plug in PCs, smart TVs, or other wired appliances without any performance differences.
The built-in noise filter helps prevent electrical signal noise from affecting your powerline performance.
The future’s looking green for powerline adapters. TL-PA7027P KIT’s practical design and sophisticated Power-Saving Mode, which automatically switches from its regular "Working" mode to "Power-Saving" mode, reduces its energy consumption by up to 85%.
| HARDWARE FEATURES | |
|---|---|
| Standards and Protocols | HomePlug AV2, HomePlug AV, IEEE 1901, IEEE 802.3, IEEE 802.3u |
| Compatibility | Compatible with all HomePlug AV & HomePlug AV2 standard Powerline adapters |
| Plug Type | UK |
| Interface | 2*Gigabit Ethernet Ports Power Socket |
| Button | Pair/Reset button |
| Power Consumption | Maximum: 4 W Standby: 0.84 W |
| LED Indicator | Power, Powerline, Ethernet |

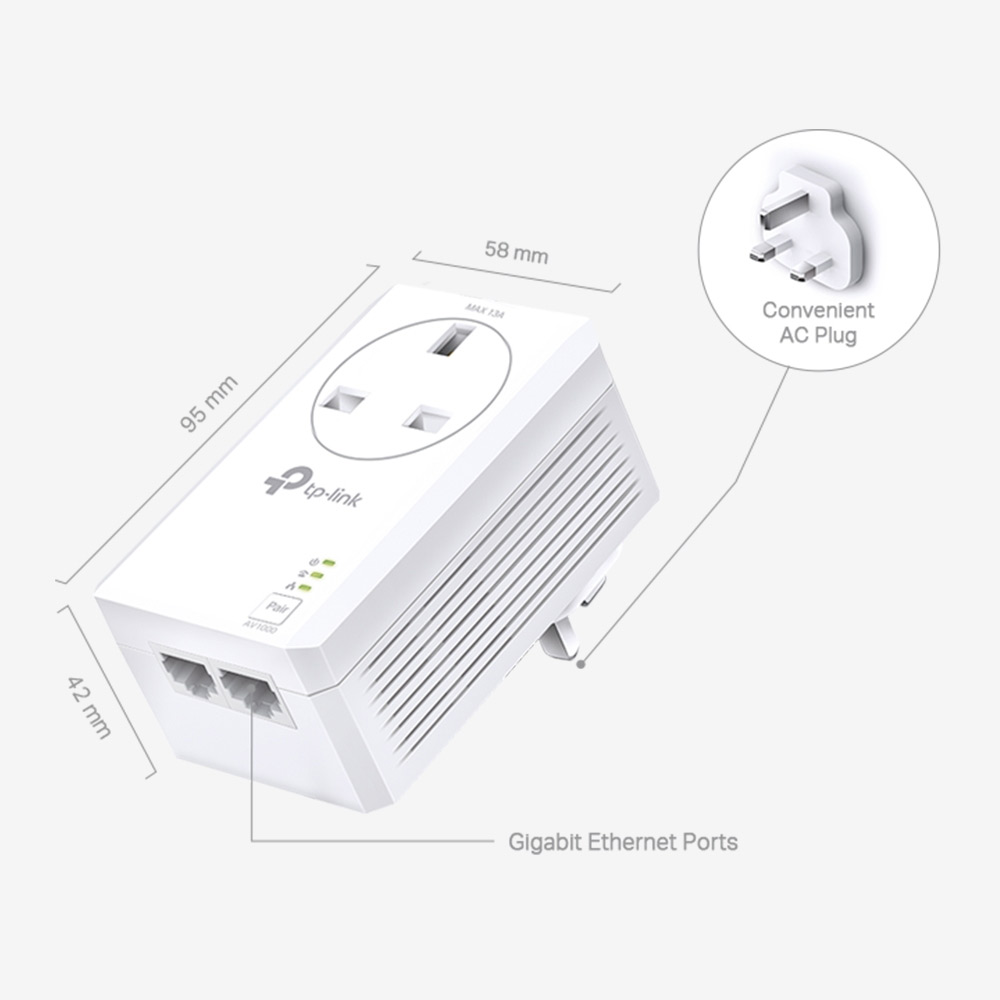

| Dimensions ( W x D x H ) | 2.3*1.7*3.7 in (58*42*95mm) |
| Range | Up to 300 meters/ 1,000 feet over existing electrical wiring |
| SOFTWARE FEATURES | |
|---|---|
| Modulation Technology | OFDM (PLC) |
| Encryption | Powerline Security: 128-bit AES |
| OTHERS | |
|---|---|
| Certification | CE, RoHS |
| Package Contents | AV1000 2-port Gigabit Passthrough Powerline Adapter: 2 × TL-PA7027P 2 × Ethernet Cables Quick Installation Guide |
| System Requirements | Windows 8.1/8/7/Vista/XP, Mac OS, Linux |
| Environment | Operating Temperature: 0°C~40°C (32°F ~104°F) Operating Humidity: 10%~90% non-condensing |
