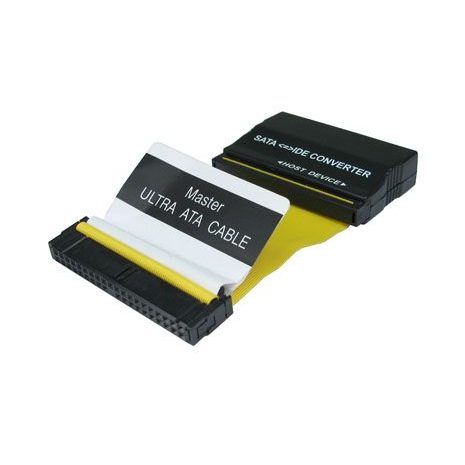

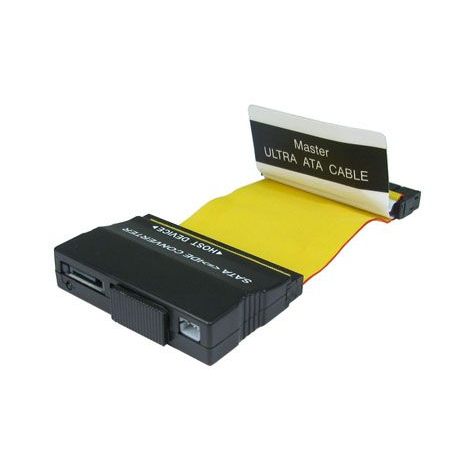

Bi-directional SATA to IDE Adaptor (Ribbon Style)

£9.00
(£10.80 inc VAT)
Short description:
Converts SATA to IDE
Converts IDE to SATA. Includes Cables
18024
+


The NL-SATADUALADAPT is a bi-directional converter for serial and Parallel ATA
translation.  The Serial ATA  physical, link, and transport layers are compliant
to serial ATA 1.0.  The NL-SATADUALADAPT converter supports a 1.5GHz data rate.
The application layer supports both the ATA register command set and packet
command set, which could drive both hard disk drive and ATAPI optical storage
such as CR-ROM, CD-RW, DVD-ROM, DVD-RW, etc.  The Serial ATA and the Parallel
ATA application layer support both host and device operation.

Easy to install
and setup, simply connect devices and slide switch to correct position. The
switch works by selecting which mode the IDE connector is to be used.  If
converting a SATA device to IDE choose HOST and when converting IDE device to
SATA select DEVICE.

Specification


  • Serial ATA 1.0 specification 1.5Gbps

  • ATA/ATAPI PIO mode 0 ? 4

  • ATA/ATAPI Ultra DMA 16.7, 25, 33, 48, 66, 100, 133 & 150Mb/s

  • Supports Serial ATA hot-plug

  • Low power consumption

  • Supports AC and DC


  •







MPN:
NL-SATADUALADAPT
+
