StarTech Active Mini DisplayPort to DVI Adapter

£20.79
(£24.95 inc VAT)
Short description:
MDP2DVIS
Active Mini DisplayPort Adapter for Eyefinity
34020
1
+ −

For shippable items by DPD courier:

Note, we do not mail all items - typically the components categories and some peripheral categories are not shipped. Put a postcode in the shipping info tab below to confirm if shipping options are available, but some items may be pickup from our shop in Ayr only.

Click and Collect Info - Click add to cart, checkout, fill out your address and choose 'Collect From Shop' as the delivery method. Orders for stock items ready for pickup within minutes (note that items like computers requiring setup take longer).

Full info including detailed instructions, operating hours and location / parking info here - Shop Collection Info

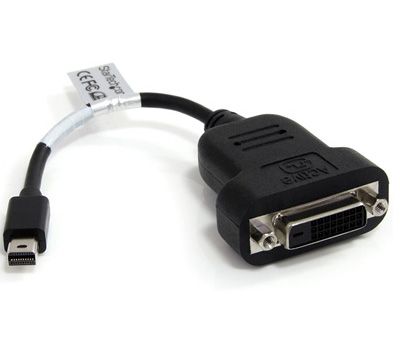

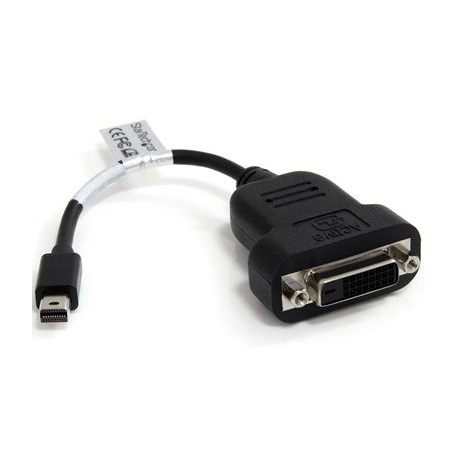

The MDP2DVIS Mini DisplayPort to DVI Active Adapter (single-link) lets you connect your Mini-DisplayPort video source to a DVI-D display, including televisions and Apple Cinema Display HD, eliminating the expense of having to upgrade to a DisplayPort capable monitor.

Unlike passive video adapters, this Mini DisplayPort to DVI adapter offers an active conversion for use with any Mini DisplayPort output - ideal for graphics cards that are not capable of outputting multi-mode DP++ signals (e.g. ATI Eyefinity).

Supporting resolutions up to 1920x1200, this compact device provides a simple solution for adapting PC or Mac® Mini-DisplayPort output for DVI monitors, televisions or projectors.

The Mini DP to DVI adapter is compatible with Intel® Thunderbolt?, when connected directly to a supporting DisplayPort over Thunderbolt? I/O port.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage
  • This Mini DisplayPort to DVI adapter offers active signal conversion, which helps overcome the limitation of some Mini DisplayPort video cards not being able to output a DP++ (multimode) signal
  • Simple to use, small form-factor converter makes Mini-DisplayPort backwards compatible with your DVI-D single link display

Features

    • Supports display resolutions up to 1920x1200
    • Works with video cards that aren't capable of outputting DP++ (multi-mode) signals
    • Compliant with DisplayPort 1.1a specifications
    • Supports HDCP 1.3
    • Compatible with Intel® Thunderbolt?




Applications

    • Ideal for digital entertainment centers, home offices, business conference rooms and trade show displays
    • Keep your existing DVI monitor to be used with your new Mini DisplayPort device
    • Perfect for larger format screens that use high DVI resolutions
    • Adapt from graphics cards that are not capable of outputting DP++ signals
    • Ideal for using your DVI monitor as a secondary display





Technical Specifications




























Warranty Information
Warranty 2 Years
Hardware
Converter Type Active
Audio No
Fire Rating LSZH Rated (Low Smoke Zero Halogen)
Industry Standards HDCP 1.3
DisplayPort 1.1
DDWG 1.0
Output Signal DVI-D (DVI Digital)
Connector(s)
Connector A 1 - Mini-DisplayPort (20 pin) Male
Connector B 1 - DVI-D (25 pin) Female
Performance
Maximum Digital Resolutions 1920x1200
Wide Screen Supported Yes
Physical Characteristics
Color Black
Product Length 200 mm [7.9 in]
Product Width 44 mm [1.7 in]
Product Height 20 mm [0.8 in]
Product Weight 70 g [2.5 oz]
Environmental
Operating Temperature 0°C to 70°C (32°F to 158°F)
Storage Temperature 0°C to 70°C (32°F to 158°F)
Packaging Information
Shipping (Package) Weight 0.1 kg [0.2 lb]
What's in the Box
Included in Package 1 - Mini-DisplayPort to DVI Adapter

Certifications, Reports and Compatibility





Destination / Device Connection:
DVI-D (Female)
Source / Host Connection:
DisplayPort (Mini)
MPN:
MDP2DVIS
