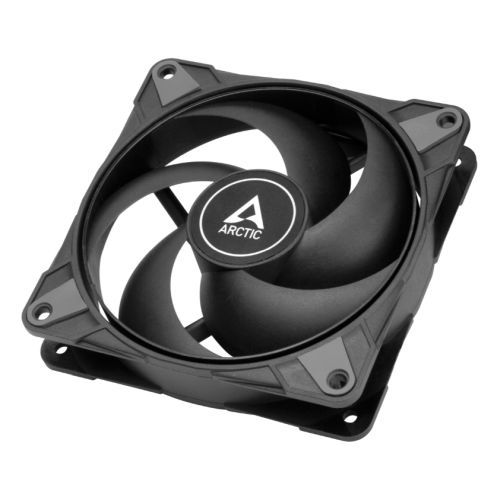

Arctic P12 Max High-Performance 12cm PWM Case Fan 200-3300rpm ACFAN00280A

£6.67
(£8.00 inc VAT)
Short description:
RPM : 200–3300 RPM
Noise : Up to 37.5dBA
25354
+
Click and Collect Info - Click add to cart, checkout, fill out your address and choose 'Collect From Shop' as the delivery method. Orders for stock items ready for pickup within minutes (note that items like computers requiring setup take longer).

Full info including detailed instructions, operating hours and location / parking info here - Shop Collection Info
Extremely Wide Speed Range

Building up on the success of the P12 PWM, the P12 Max extends the controllable speed to an impressively wide range from 200 RPM up to 3300 RPM. This enables a quiet operation when low airflow is needed and also an unprecedented level of performance on heatsinks and radiators. The P12 Max provides a significant performance boost to existing air and water cooling solutions.

Maximum Performance - Without Compromises

The P12 Max delivers focused airflow and high static pressure, making it suitable for all scenarios. The fan is optimised for use on radiators, heat sinks, pinholes and mesh. Therefore, the P12 Max is the ideal fan for enthusiasts and professionals who are looking for maximum performance with a long service life.

0dB Mode - Zero RPM

The fan speed can be throttled down to standstill via PWM. This allows silent operation in IDLE and at the same time guarantees maximum performance when required. Thus, the P12 Max allows an incomparably dynamic adjustment of the speed, so that the airflow can be perfectly regulated for every case.

Improved Stability

The P12 Max features a closed fan wheel design. The advantage of this fan wheel combination is a pressure stability without compromise. In scenarios with high pressure resistances and higher speeds, the force effect is distributed uniformly over the entire fan wheel and enables low-vibration rotation while maintaining high static pressure.


Maximum Smoothness, Minimum Vibration

Even at low speeds the operating sound of the new ARCTIC motor is barely noticeable. Due to a sinus-magnetizing the new motor only creates about 5 % of the vibration from commutation of a regular DC-motor without filter. The rubber pads mounted at the corners additionally dampen the residual vibrations caused by the higher revolutions.

Designed for Continuous Operation

The premium quality of the dual ball bearing allows 24/7 continuous operation without compromising performance. Contamination and high temperatures affect this bearing much less than ordinary sleeve or ball bearings. Therefore, the dual ball bearing is the perfect choice if you want to ensure continuous operation at maximum speed. Please note that ball bearings have a physically higher bearing noise compared to conventional sleeve bearings.

  • Fan Speed: 200–3300 RPM
  • 0 RPMbelow 5 % PWM
  • Airflow: 81.04 cfm | 137.69 m3/h
  • Static Pressure: 4.35 mm H2O
  • Noise Level: 0.6 Sone
  • RPM-Control: Pulse Width Modulation – PWM
  • Fan Bearing: Dual Ball Bearing
  • Typical Voltage: 12 V DC
  • Start Up Voltage: 3.9 V
  • Current: 0.29 A
  • Cable Length: 400 mm
  • Connector: 4-Pin Connector
Connector Type:
4-pin PWM
GTIN:
4895213704076
MPN:
ACFAN00280A

Case Fans

Airflow:
81cfm
Blade Colour:
Black
Fan Size:
120mm
LED Lighting:
None
Noise Level:
37.5dB(A)

New features

Manufacturer:
Arctic Cooling
+
