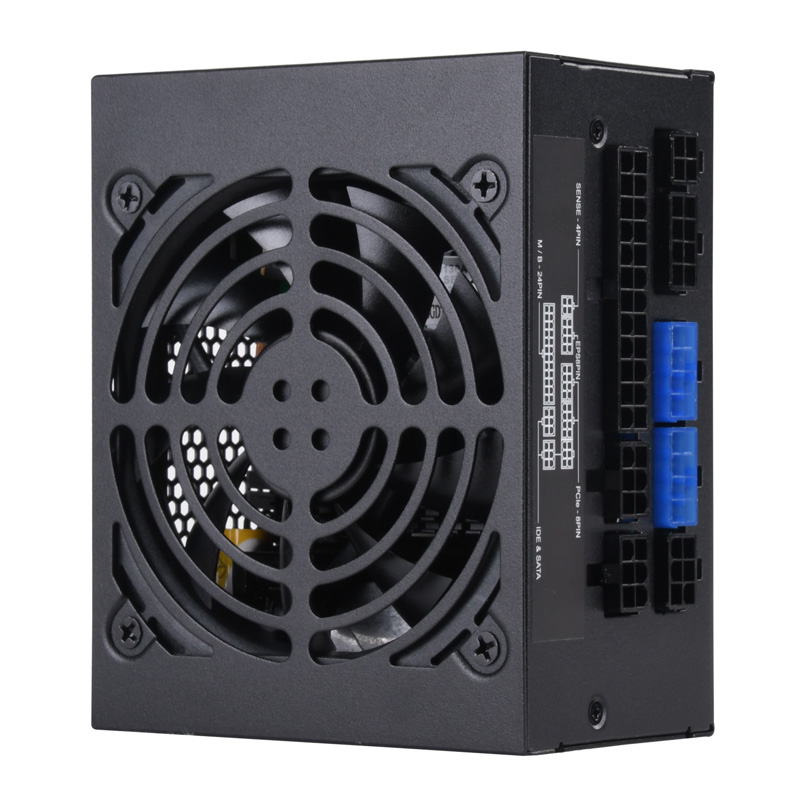

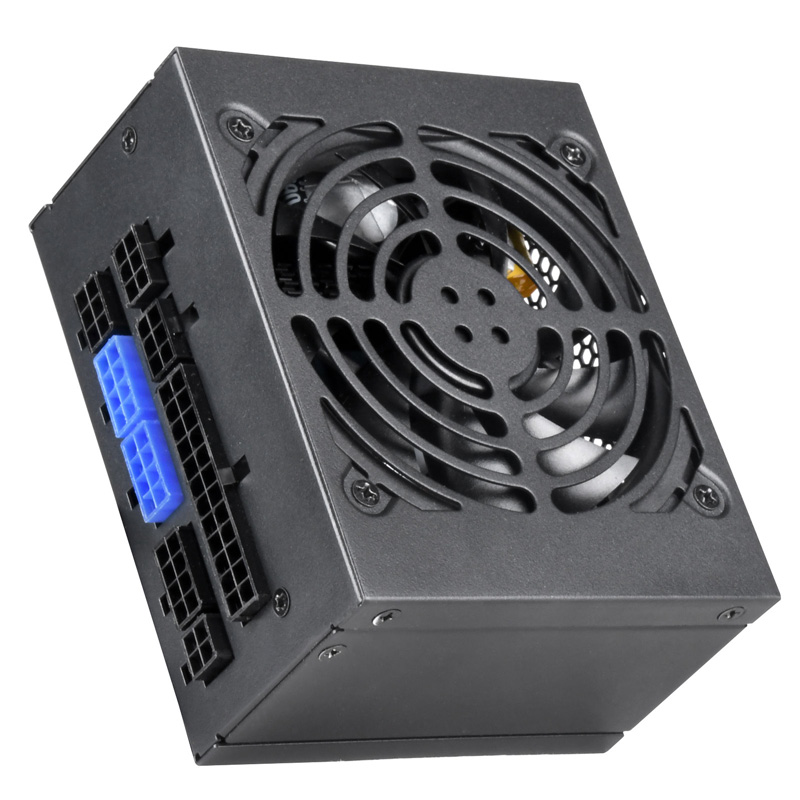

Silverstone 650w SFX Series 80Plus Gold MicroATX / SFX PSU SST-SX650-G v1.1

£105.83
(£127.00 inc VAT)
ATX V2.x
Short description:

For MicroATX / SFX Chassis SX650G
80Plus Gold

16378
Out of stock

We (Kustom PCs Ltd) will add your email address to a special mailing list for this product. Once the product is in stock, you’ll get an email about it automatically, and your email address will be removed from the product’s mailing list. The message is a one-off, and once notified about the product, no further data regarding this request is retained.

The data will be visible to some members of our staff. If you’d like to have your personal data removed, send an email to sales@kustompcs.co.uk.

If you believe that your personal data has been misused, you have the right to lodge a complaint with a supervisory authority. We’re obliged by EU General Data Protection Regulation to let you know about this right; we don’t actually intend to misuse your data.

Click and Collect Info - Click add to cart, checkout, fill out your address and choose 'Collect From Shop' as the delivery method. Orders for stock items ready for pickup within minutes (note that items like computers requiring setup take longer).

Full info including detailed instructions, operating hours and location / parking info here - Shop Collection Info
  • Support standard SFX form factor
  • Silent running 92mm FDB fan with 18 dBA minimum
  • All Japanese capacitors
  • High efficiency with 80 PLUS Gold certification
  • Class-leading single +12V rail
  • Strict ±3% voltage regulation and low ripple & noise
  • 100% modular cables
  • All cables made with flexible flat arrays
  • Dual EPS 8pin with multiple PCI-E 8 / 6pin connectors support (V1.1)
Dimensions W D H
125mm 100mm 63.5mm
ATX Spec ATX v2.4
Effiency 80Plus Gold - 87%~90%（20% to 100% loading）
Fan 92mm Silent Fan, 18dB(A) minimum

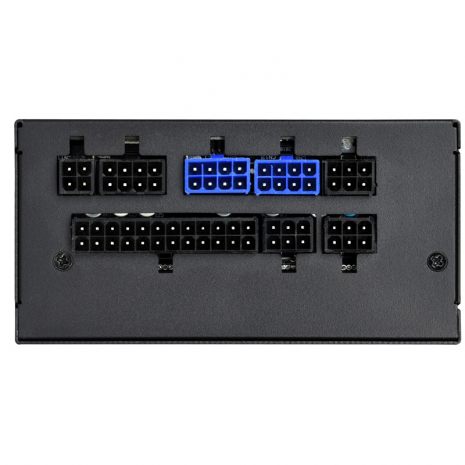

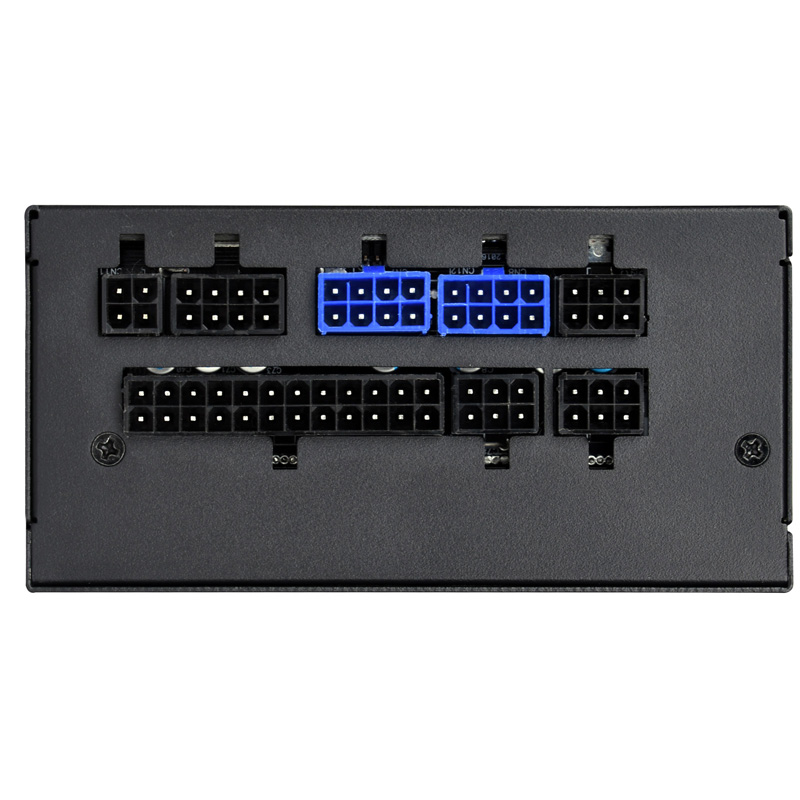

Connectors Molex Floppy SATA
3 1 6
PCI-E M.board AUX
4 x 6/8 Pin
(2 each of
400 and 550mm Lengths)		 20/24 1 x 8 Pin
1 x 4 / 8 Pin

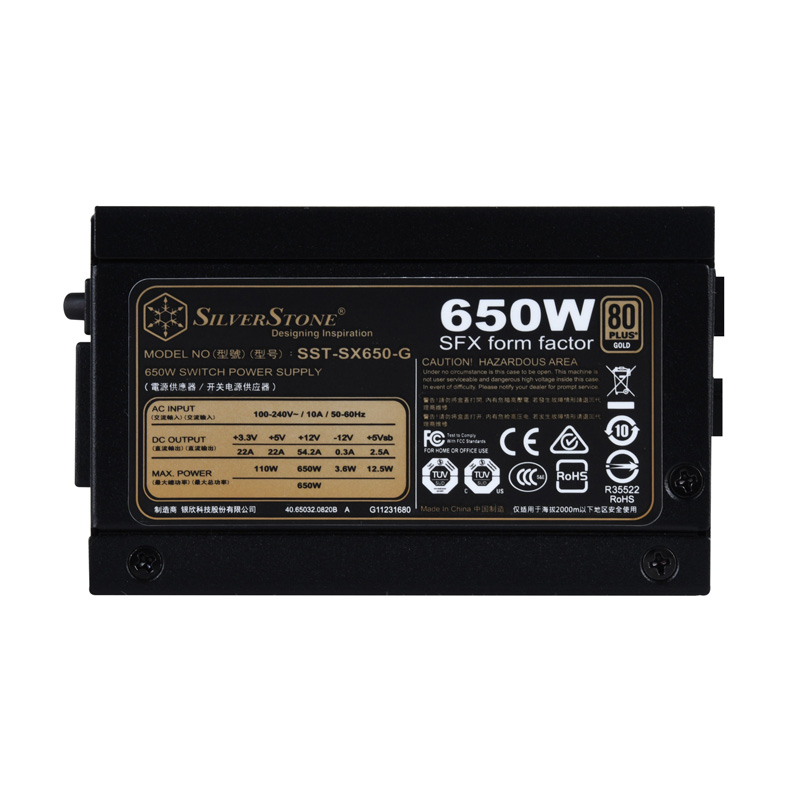

Output Current +3.3v +5v +12v
22A 22A 54.2A
-12v -+5vsb 12v Rails
0.3A 2.5A 1
+3.3v & 5v Power 110W
+12v Power 650W
-12v Power 3.6W
+5vsb Power 12.5W
Total Power 650W
Input Voltage 90-264v Auto
Modular Fully Modular
Motherboard Cable Lengths 300mm for ATX 24pin 400mm for CPU 4/8pin

Full details here - https://www.silverstonetek.com/en/product/info/power-supplies/SX650-G/

Form Factor:
SFX
Depth / Length:
100mm
ATX Standard:
ATX V2.x
ATX12V Connections:
2 x 8 pin
Cable Configuration:
Fully Modular
Efficiency:
80 Plus Gold (92%)
GTIN:
4710679810904
MPN:
SST-SX650-G v1.1
PCI-E Connections 6/8-pin:
4 x 6/8pin
SATA Power:
6
Wattage:
650W

New features

Manufacturer:
Silverstone
+ −
