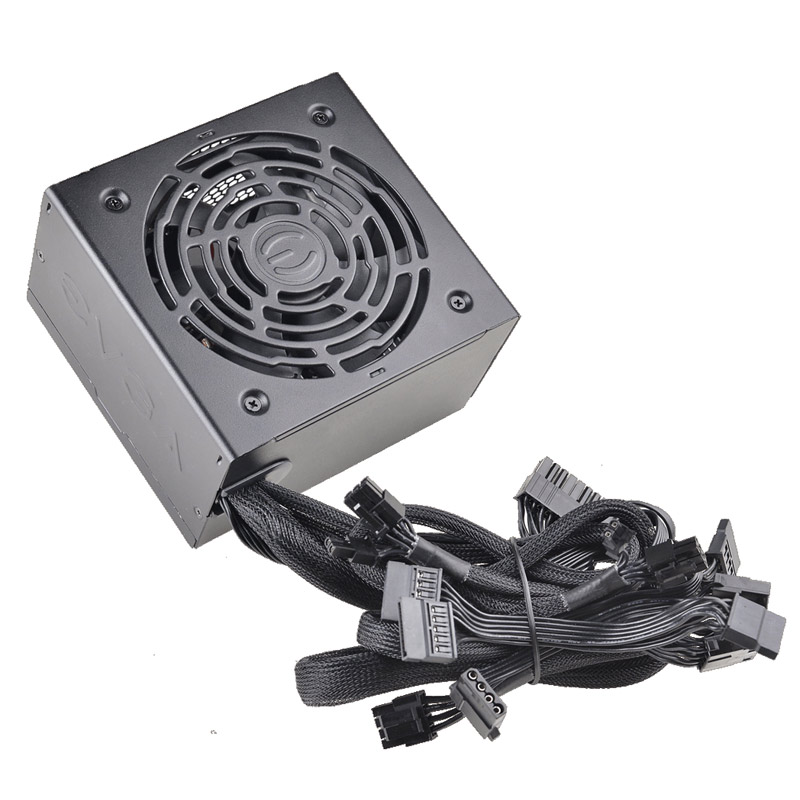

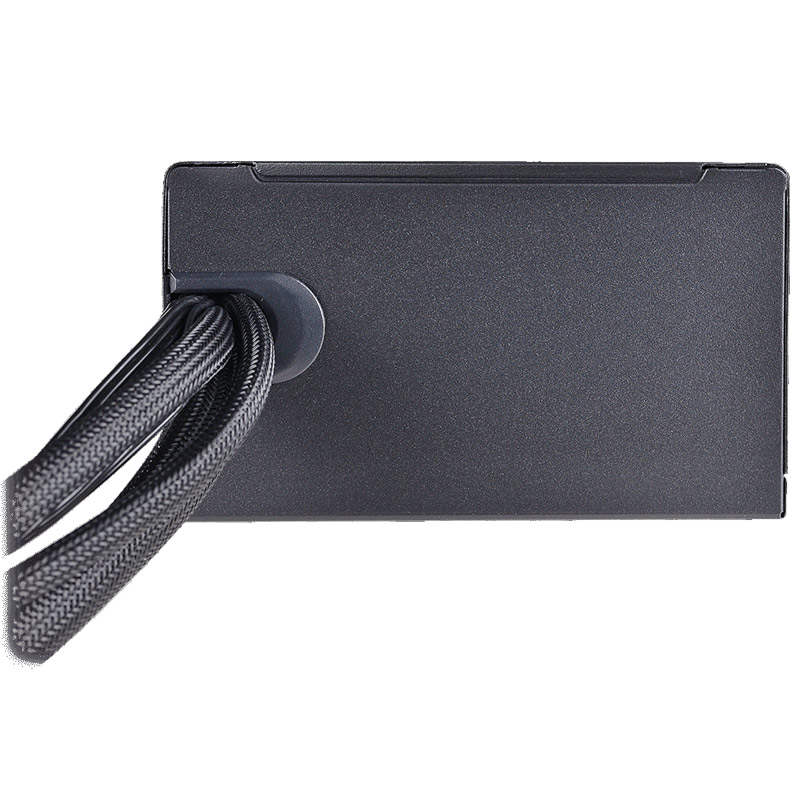

EVGA 500 BR 500W Power Supply

£33.00
(£39.60 inc VAT)
Short description:

500W ATX Power Supply, 80Plus Bronze
100-BR-0500-K3

16280
+

The EVGA 500BR Power Supplies are here. Designed with both beginner and enthusiast needs in mind, EVGA power supplies are the best choice to power next generation computers. Combining 500W of continuous power with exceptional performance, stunning efficiency, and reliable quality, the 500W BR power supply is what you need to build a solid foundation for your next system.

FEATURES

  • 80 PLUS Bronze certified, with 85% efficiency or higher under typical loads
  • Single 12V. Rail
  • Active Power Factor Correction (PFC)
  • Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection)
  • 3 Year Warranty
  • DC-DC Converter improves 3.3V/5V stability
  • Quiet and Intelligent Auto Fan for near-silent operation
Dimensions W D H
150mm 140mm 86mm
ATX Spec
Effiency 80Plus Bronze (85% Typical)
Fan 120mm Sleeve Bearing Fan

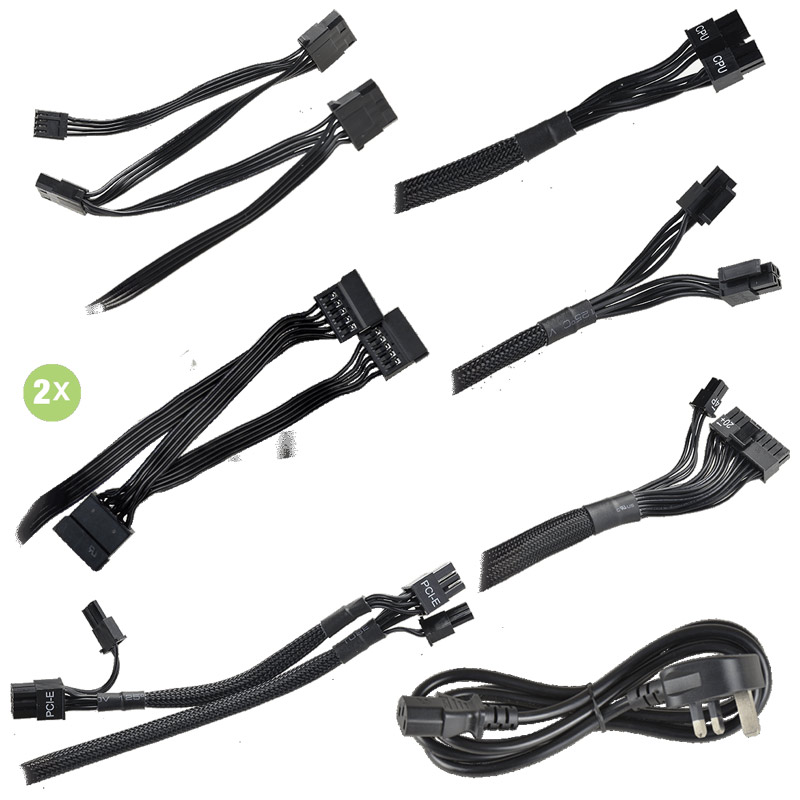

Connectors Molex Floppy SATA
3 1 6
PCI-E M.board AUX
2 x 6/8 Pin 20/24 1 x 4/8 Pin
Output Current +3.3v +5v +12v
24A 20A 40A
-12v -+5vsb 12v Rails
0.3A 3A 1
+3.3v & 5v Power 120W
+12v Power 500W
-12v Power 3.6W
+5vsb Power 15W
Total Power 500W
Input Voltage 100-240v Auto
Modular No
Motherboard Cable Lengths ATX = 55cm, EPS = 60cm



Form Factor:
ATX
Depth / Length:
140mm
ATX12V Connections:
8 pin
Cable Configuration:
Fixed Cables
Efficiency:
80 Plus Bronze (88%)
GTIN:
4250812423610
MPN:
100-BR-0500-K3
PCI-E Connections:
2 x 6/8pin
SATA Power:
6
Wattage:
500W

New features

Manufacturer:
EVGA
+
